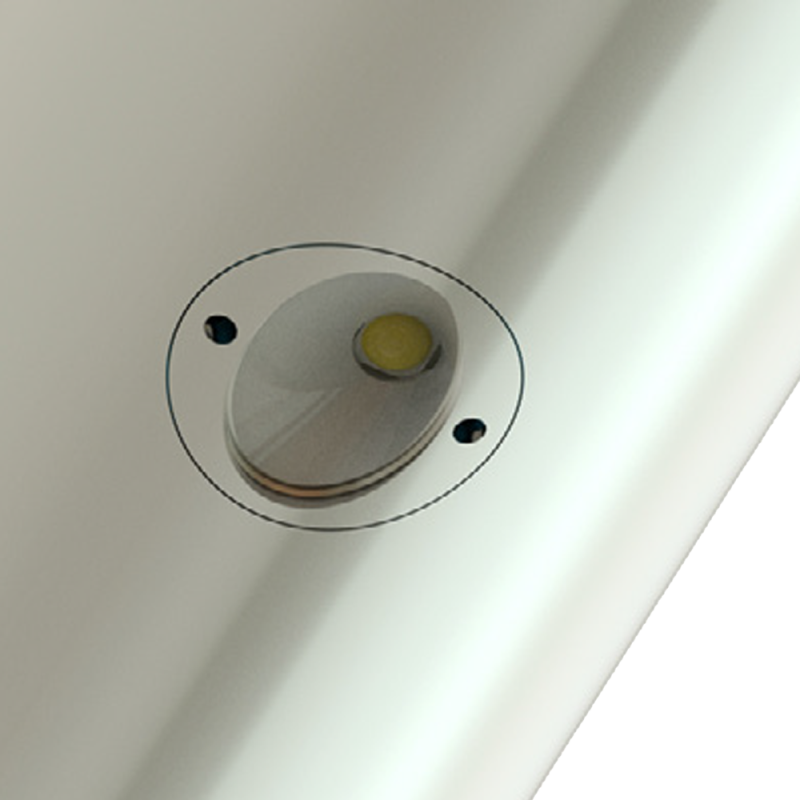

Handrail Asymmetric

LED handrail lighting system, suit for standard handrail made by stainless steel and aluminum.
Different colors from 2700-6000K and blue for LEDs areavailable, IP67 waterproof.
Suit for standard Ø40-90mm round handrail with wall thickness 1.5-2.5mm.
3M waterproof internal connectors.
Can be driven by constant voltage and constant current LED driver
Working Temperature -20~+45 ℃
Stainless steel 316 housing is standard, and aluminum housing is optional.
Customized sizes, shape and beam angle on request

Ladda ner produktdatablad (PDF)

Artikelnr: N/A Kategori:
Handrail Asymmetric
Handrail Asymmetric

[wpforms id=”1190″ title=”true” description=”Request a call back”]
Produktblad PDF

LED handrail lighting system, suit for standard handrail made by stainless steel and aluminum.
Different colors from 2700-6000K and blue for LEDs areavailable, IP67 waterproof.
Suit for standard Ø40-90mm round handrail with wall thickness 1.5-2.5mm.
3M waterproof internal connectors.
Can be driven by constant voltage and constant current LED driver
Working Temperature -20~+45 ℃
Stainless steel 316 housing is standard, and aluminum housing is optional.
Customized sizes, shape and beam angle on request



Ytterligare information

Övrigt
Färgtemperatur: No selection

2700K | 3000K | 4000K

Nominell ingående ström: No selection

350mA | 500mA

Ljusflöde: No selection

350mA: 99lm | 500mA: 142lm

Spridningsvinkel: No selection

Asymmetrisk 80º

Montage: No selection

Infälld i rör / handledare: Ø40 – 90mm i diameter med väggtjocklek 1,5 – 2,5mm

Drifttemperatur: No selection

-20ºC – +45ºC

Material: No selection

Rostfritt Stål 316

Diameter: No selection

16mm

Höjd: No selection

17

Montering / Installation: No selection

Gör ett 15mm hål som sedan försänkt 1.5mm – Ø16mm. Jigg och verktygskitt finns som tillbehör.
Produktblad Handrail Asymmetric
